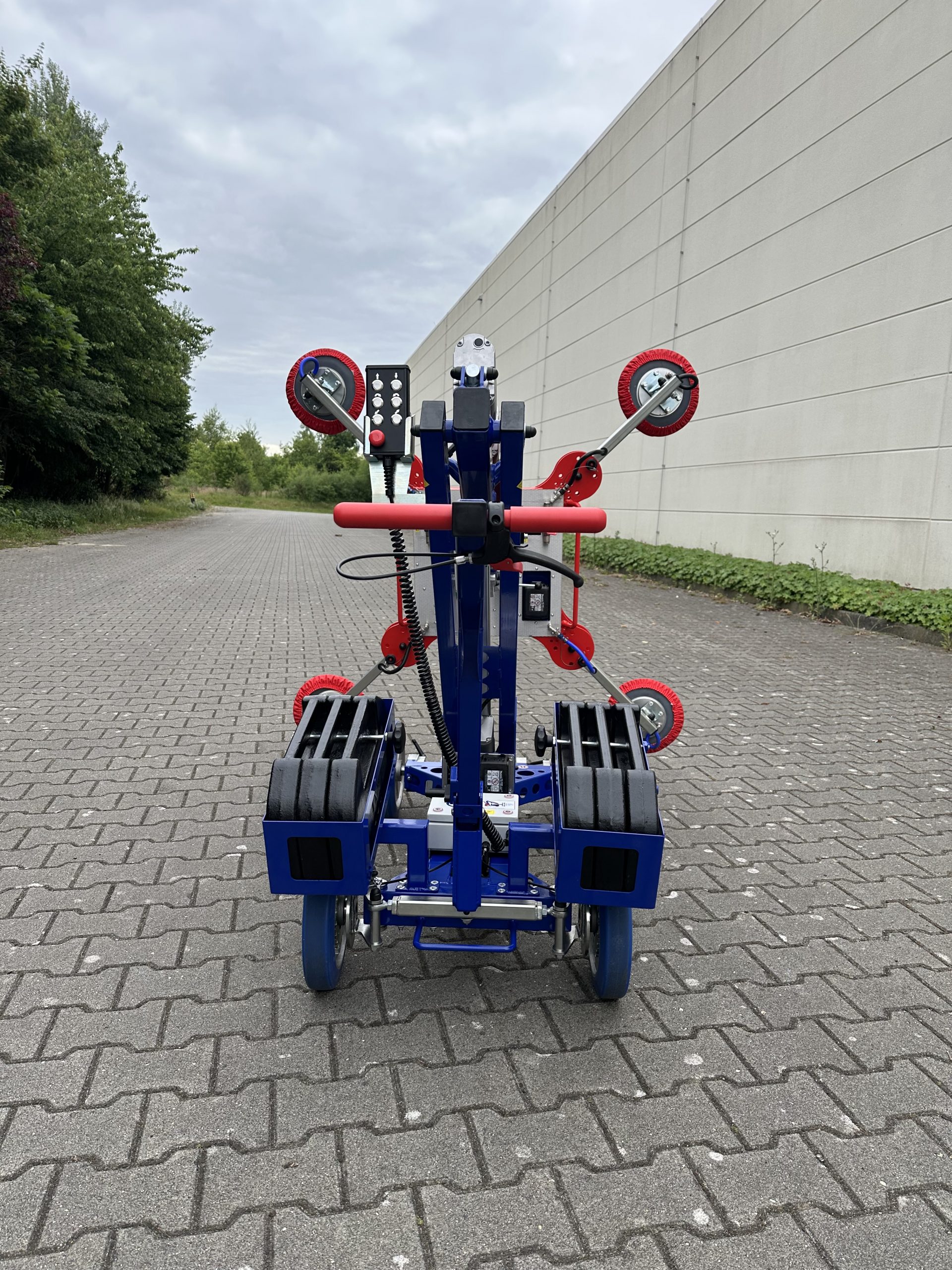

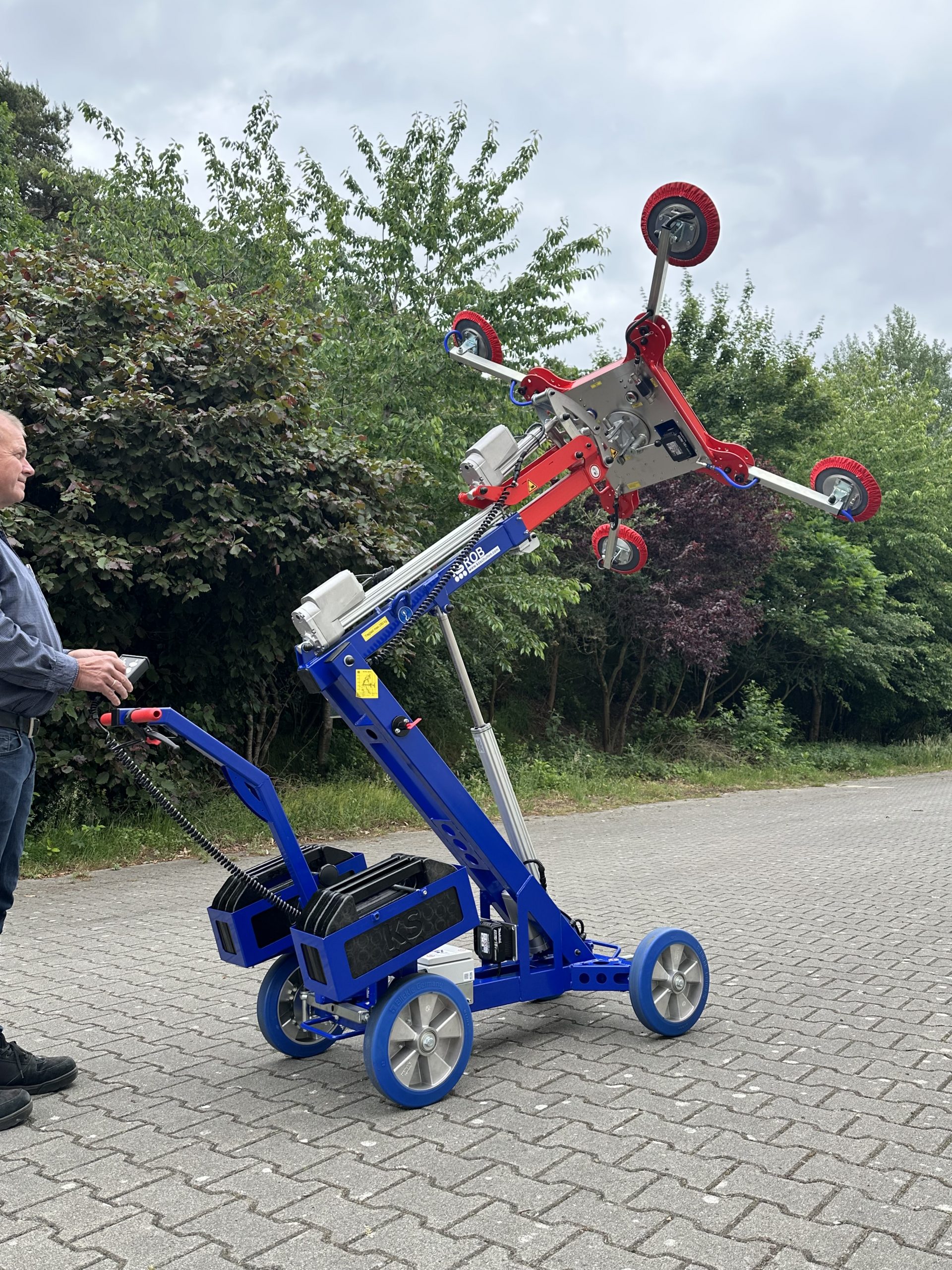

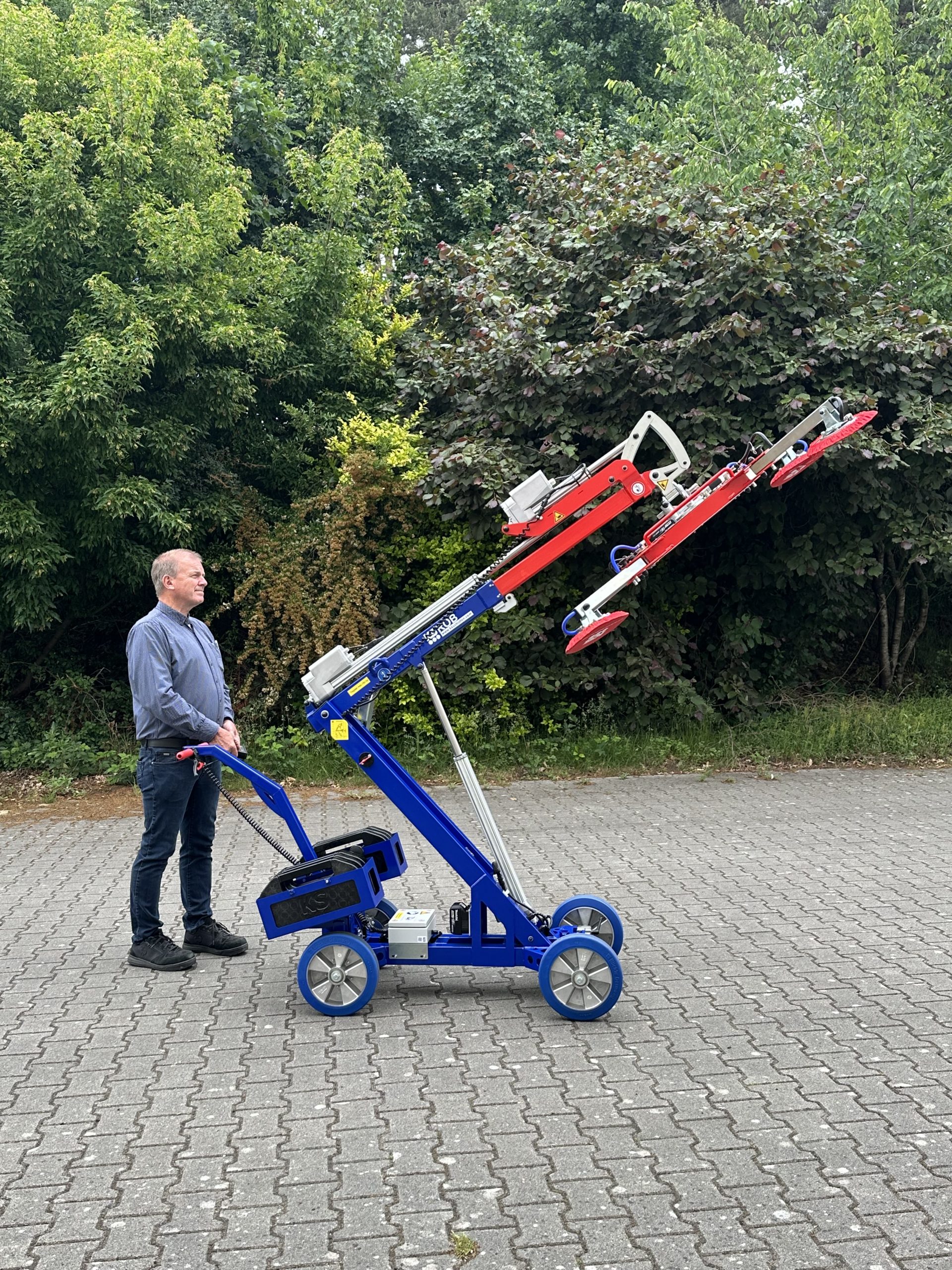

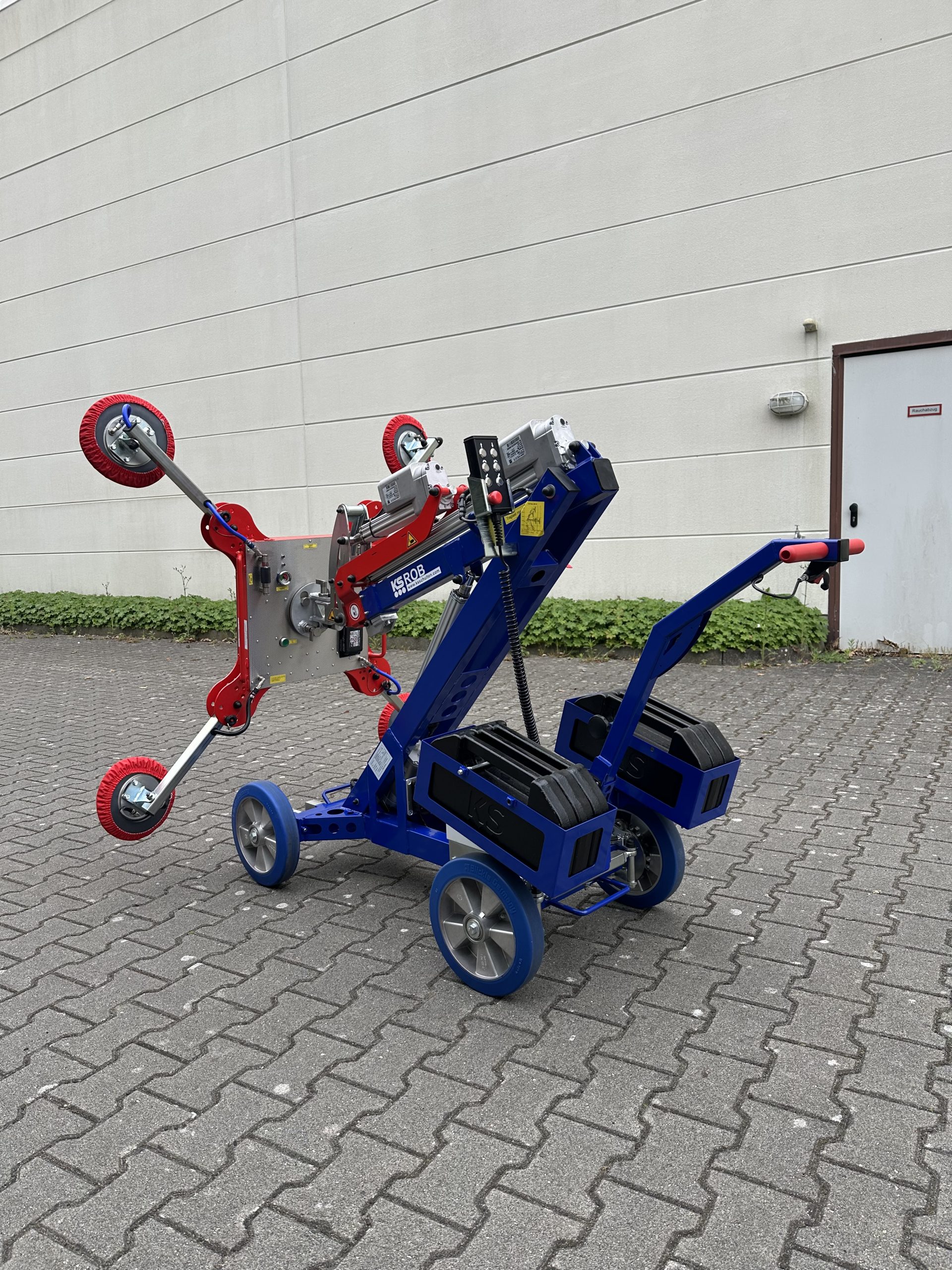

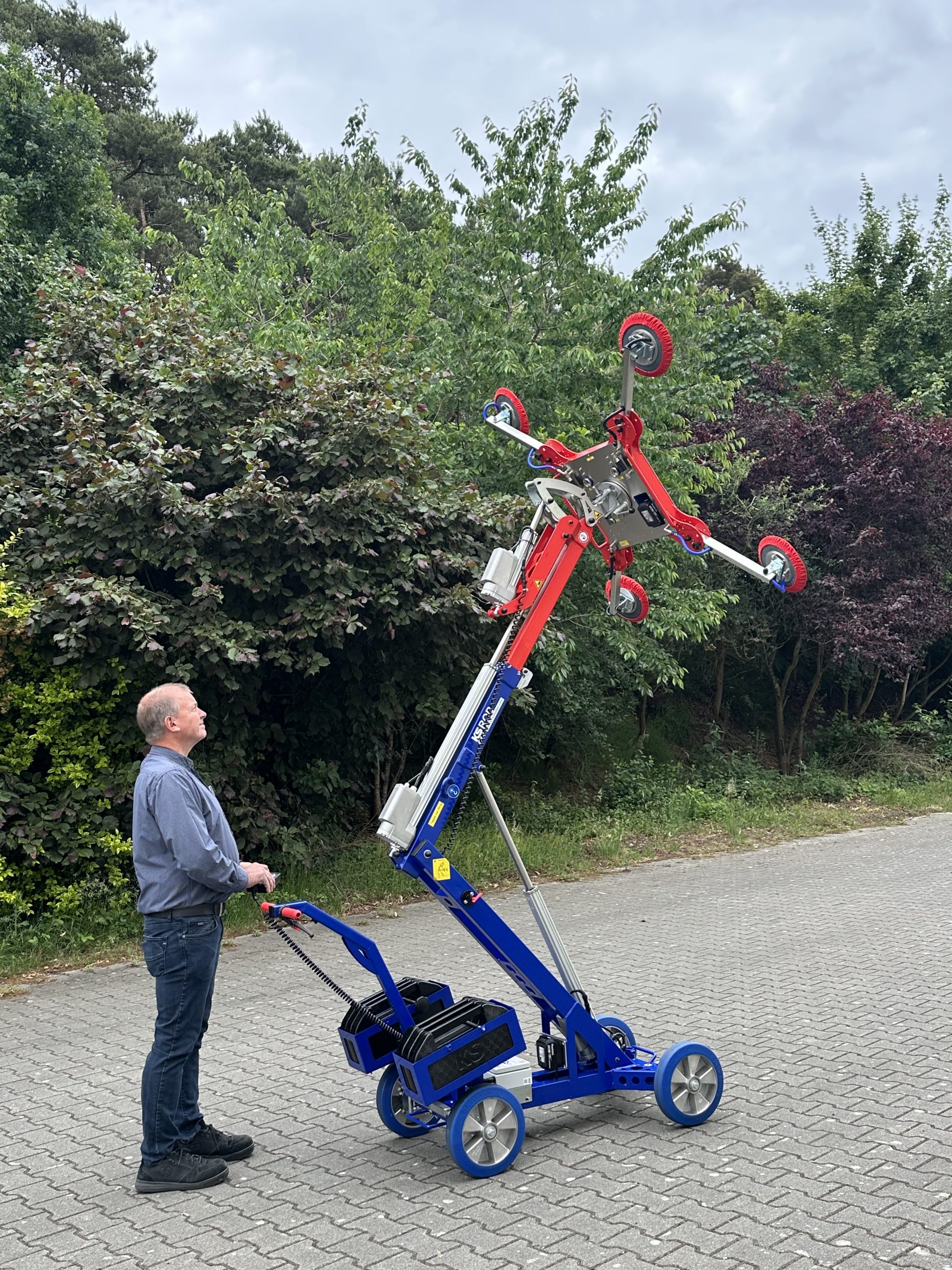

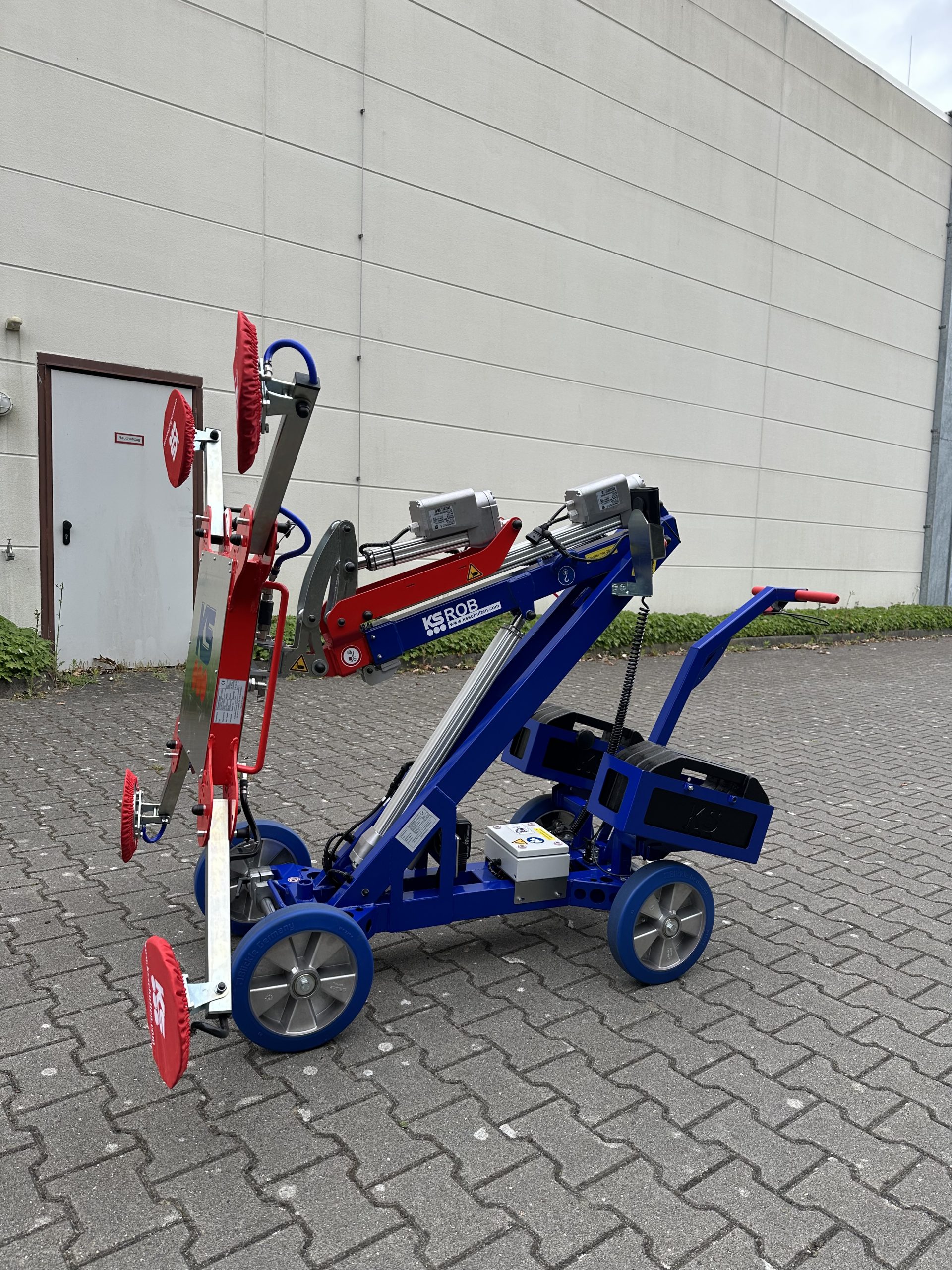

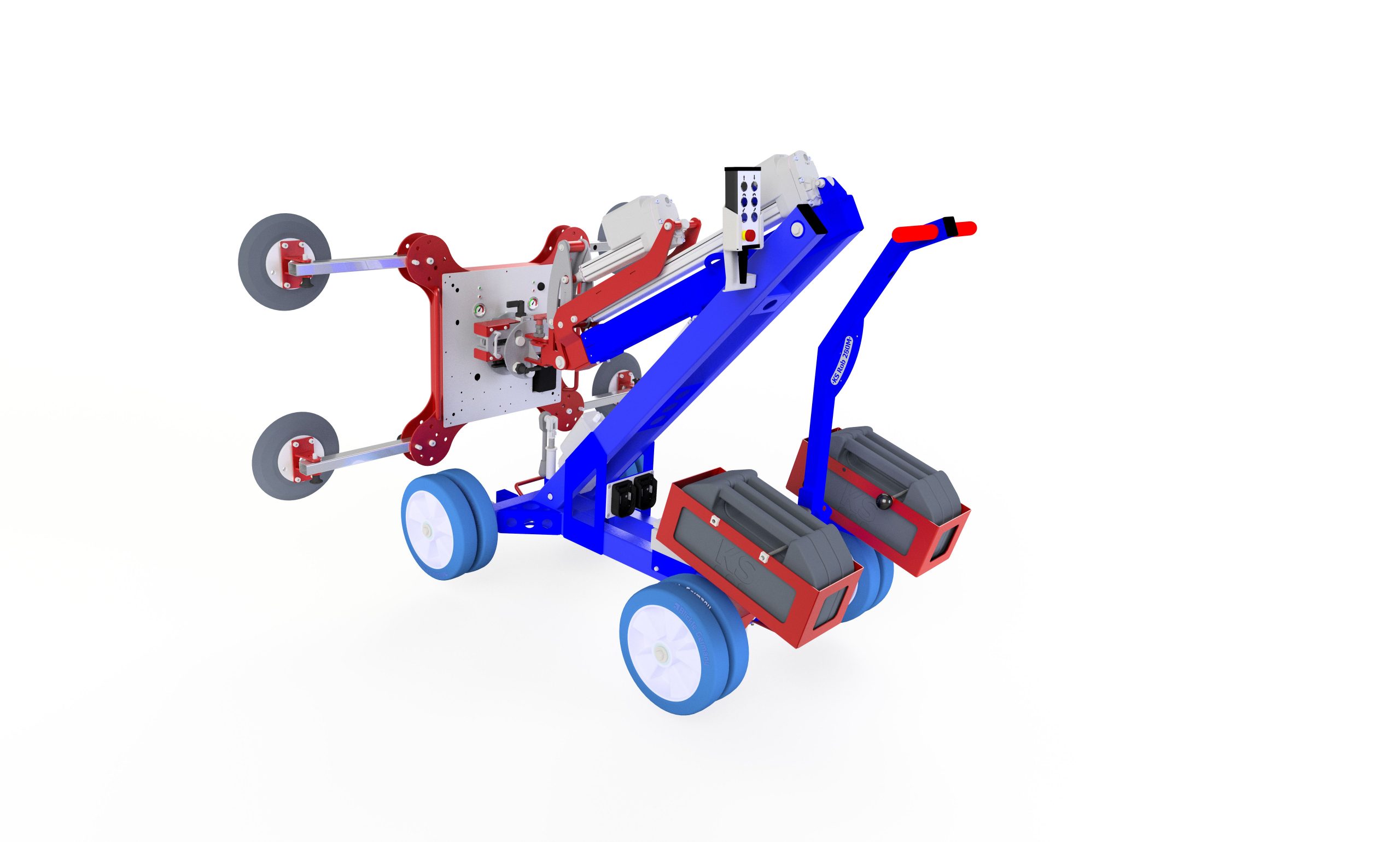

MAVLift 620 Indoor Glazing Robot

The smallest of the traditional Indoor Glass Robots, the Indoor 620 is the perfect glazing tool for installing glass or moving materials weighing up to 620 pounds. Coming standard with Synchronous Control to ensure a constant inclination angle of the suction unit while raising or lowering the boom, the smooth and precision touch of the 620 is unmatched. Also standard on the MAVLift 620 is the Advanced Articulated Joint allowing for additional electric articulation of suction unit so it may swivel from the horizontal plane to overhead seamlessly. Small enough to fit through a standard door and offering 90° slewing for easy transport of glass or materials in tight spaces, the Indoor 620 is a favorite among glass installation companies large and small.

For added versatility, don’t forget to add Load Forks for easy transport of materials on your jobsite.

  • Maximum Lifting Capacity of 620lbs
  • Lifting Unit Electrically Turns in All Directions and Telescopes to the Front
  • Synchronous Controls- automatically keeps a constant inclination angle of vacuum unit
  • Advanced Articulated Joint- Allows for additional electric articulation of suction unit so it may swivel from the horizontal plane to overhead

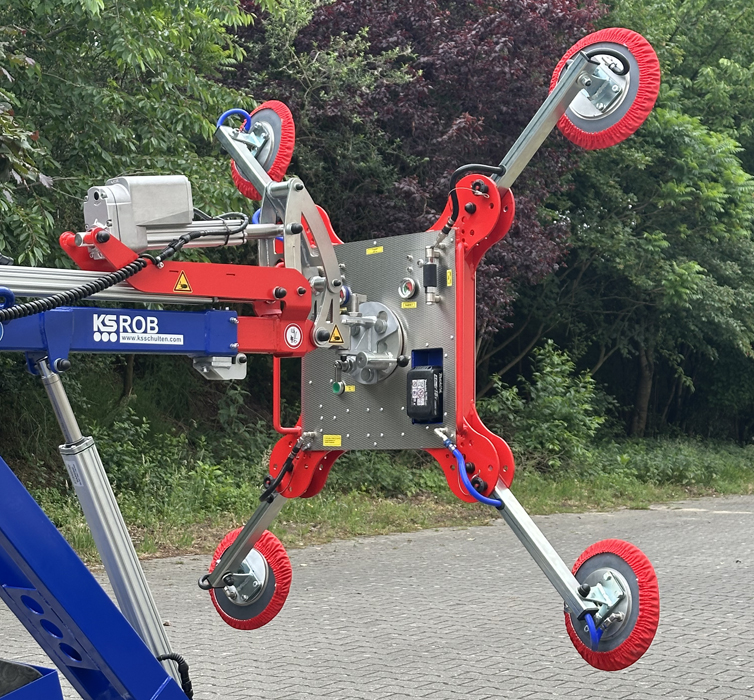

  • Adjustable Suction Frame

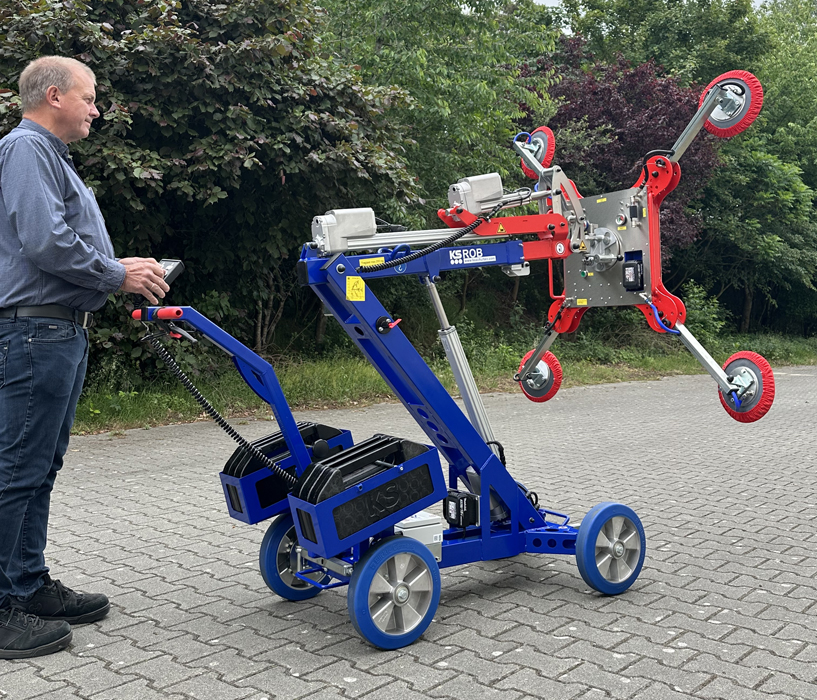

  • Remote Control
  • Suitable for Overhead Lifting
  • 4″ Lateral Sideshift (left and right)
  • 180° Suction Unit Rotation (manual left and right)
  • 90° Slew of Vacuum Unit (left and right)
  • Two Independent Vacuum Circuits with Two Pumps and Two Vacuum Reserve Tanks
  • Robotic Arm Powered by Electric Actuators for Precision Control
  • Operates on Two 12v DC Rechargeable Batteries or While Plugged into Standard Outlet
  • Safety Features Include -Overload Switch, Stop Switch, and Vacuum Lost/Overloading Indicator

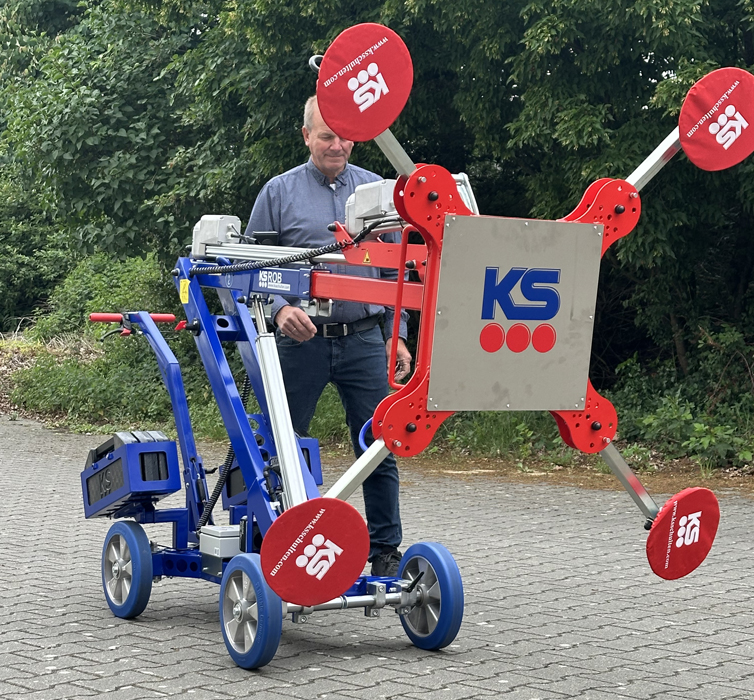

  • Suction Cup Protection Covers
  • Wireless Remote Control
  • Indoor Non-Marking Tires
  • Curved Glass Frame
  • Load Forks for utilizing your MAVLift for material handling
  • Hook Adapter – Remove the cup system and add a lifting hook to your MAVLift
  • Fork Lift Platform – Utilize your MAVLift as an extension of your Forklift
  • LED Light- LED with Magnetic socket powered by the machines battery pack
  • Loading Ramps- Two 16′ x 3′ 2200lbs max load ramps for easy loading into a transport vehicle or trailer
  • Weather Cover for MAVLift 620
Max Load Capacity 620 lbs
Counterweight Weights 5 x 37 lbs
5 x 57 lbs
Machine Weight (without counterweights) 694 lbs
Machine Weight (with removable counterweights installed) 1164 lbs
Jib Angle 125°
Maximum Permitted Slope: 17°
Powered Lateral Sideshift 4″
Power Requirements Battery: 110v/240v charger
Pump: 12v DC
Load Capacity of Suction Unit 620 lbs
Vacuum System 2 Vacuum Pumps, 4 Cups
